Walter Lovett was a professor of Civil Engineering at the University of Pittsburgh and made the following contribution on a conference about structural foams in 1960.

The first foamed glass was developed in this country in 1938 and was first placed on the market in 1942. Several factors contributed to the production of this material, but the most important were:

• An idea that there was a need for a waterproof, noncombustible, inorganic ma­terial of low density and low thermal conductivity to serve industry as an insulant.
• The Navy’s need for a material which would stand up well in salt water, be buoy­ant enough to float anti-submarine nets, and also withstand the action of enemy

Since the United States was at war during 1942, the larger part of the development of foamed glass was pointed toward the production of a buoyant item. From foamed glass, cubes were formed approximately 8′ on a side, protected on the outside by heavy plank­ing. They were floated out into the mouths of harbors and rivers by the thousands, and there used to hold up steel anti-submarine nets. During the war years, the vast quan­tity of foamed glass produced was used for this purpose; however, some was also made available for use as an insulant for roofs, and as cold storage and wall insulation for humidity-controlled buildings such as exist in the textile industry.

The material is made by grinding a bora-silica type glass to about the consistency of portland cement. This fine glass powder, with a small addition of other ingredients, is placed in stainless steel pans and heated to about 1750⁰F, which causes the material to foam. The material is then put through an annealing lehr (oven) to relieve any in­ternal stresses, and then is cut into blocks of various thicknesses.

The primary use of foamed glass is for insulation, but it has been and is being used as a structural load-bearing material. For example, when the Central Mortgage and Housing Corporation of Canada was studying the need for low-cost housing, they first made a study of materials other than the conventional wood frame and the prefabricated wall system, which both involve numerous, time-consuming operations to fabricate and erect,

Central Mortgage and Housing’s requirements for an acceptable wall material were that the material must be strong, rigid and possess resistance to heat transfer, moisture transfer and fire, and preferably that it be homogeneous and easily mass-produced, After studying various materials, it was decided that foamed glass was the closest ap­proach to the desired material. Having chosen the wall material, it was decided to build an experimental house in the industrial community of Ajax, Ontario. A basement-less house was chosen for this investigation consisting of two bedrooms, bathroom, combination dining and living room, kitchen and utility room.

The house was erected in the spring of 1949. The wall and interior partitions were pre­fabricated using 2″ x 12″ x 18″ thick foamed glass blocks bonded together with hot asphalt to form a 4″ thick panel. The joints between the blocks were staggered to assure an overlap. Window and door openings were made in the panels as they were fabricated. The edges of the panels were vertical construction joints to be made during erection and were coated with a thermoplastic adhesive which can be reactivated after it has hardened by applying heat.

Before erection, the surfaces of all partitions and exterior panels were covered with cloth set in ordinary oil base paint, over which one coat of paint was applied. Second coats of paint were added on the inside and outside walls for aesthetic reasons, and a decorative finish was applied to the interior walls.

The exposed edges of the panels were protected by wooden crating during transportation and stock piling.

The panels were erected by setting them on the concrete slab in a slow-setting adhesive compound. Aligning the vertical edges close together, a specially designed heater was inserted between the edges In order to reactivate the thermoplastic coating. To prevent heat from escaping, a vertical wood strip was placed over the joint. When the adhesive was reactivated, the heater and wood backing strip were removed, and the one panel was shoved manually against the other.

After all the wall panels were in place, the prefabricated plywood roof sections were hoisted into place and adhered to the top edges of the exterior and interior walls.

A look at the performance record of this foamed glass house reveals that it has been economical to heat since the 4″ wall has a 0.09 coefficient of thermal transmission. Also, the homogeneous foamed glass reduced the air infiltration to a minimum. In the coldest months, the tenant uses slightly over 80 gallons of oil. The greatest heat loss is at the perimeter of the concrete slab.

In addition to its resistance to heat transfer, this material has very good resistance to moisture penetration. Some small penetration occurred at the joints of panels. At these points, caulking compounds were applied which remedied the situation.

The house has weathered the elements for ten years and has proven structurally sound against high wind, including “Hurricane Hazel.” The cost of the experimental unit was $14, 117, This included all material, labor, trial installations and development work. It was estimated that the potential cost of the same unit produced on a mass-production basis and erected by an experienced crew would run about $7,600 using 1949 costs.

The newest use of foamed glass is in the acoustical absorption field. Foamed glass, as originally manufactured, is a completely closed-cell material. In order to give the material sound-absorbing properties, foamed glass with open cells has been develop­ed. A unit is now being produced which measures 13-1/2″ x 13-1/2″ x 2-1/2″ having four 2.1/2″ square x 1/2″ thick pads on the back for mounting, to leave a 1/2″ air space behind each unit. This unit is designed to be used as a “patch absorber,”

These foamed glass units (Fig. 1) are incombustible, rigid, and dimensionally stable. They will not shrink, warp or change dimension with changes of temperature or humid­ity. The units are especially designed as a sound-conditioning material to provide the architect or designer with a product whose prime function is sound absorption, diffusion and control. By the proper placement and spacing of these units in a room, the reverberation time and diffusion of the sound waves may be closely controlled.

Let us look at how the foamed glass sound absorbers are adapted in a room to provide good listening conditions. For example, if we decided that a particular room is to have a certain desired reverberation time, and calculated that “x” amount of Sabina of ab­sorption is required, knowing the number of Sabina required, we divide this figure by two which gives the number of absorbers required, since each foamed glass unit absorbs an average of 2.0 Sabina over the speech frequency range.

For good acoustics, the sound reflection must be diffused and must not give a direc­tional impression. To accomplish this, the absorbing units should be distributed on the surfaces of a room and not concentrated on one surface or in large areas. This can be done by the “spot-and-patch” technique. This consists of spacing absorbers to provide contrasting reflection and absorption surfaces. With foamed glass unit absorbers, this is easily done because of the independent unit design that allows spaced or cluster mounting on wall and ceiling areas.

In general, the upper areas of the wall and perimeter areas of ceilings in from the wall are used for mounting the units. In classrooms or auditoriums, the units are placed in larger numbers around and toward the listening (audience) end. At the speaking  end, the units are few or nonexistent, for reflective reinforcement. In areas of general noise (cafeterias, swimming pools, etc.) the units are placed uniformly around wall and ceiling areas. Figure 2 shows foamed glass absorbers being placed on the wall. Figure 3 shows a classroom treatment, and Figure 4 shows the units on the walls and ceiling of a swimming pool.

Another use of foamed glass has been in the construction of cold storage warehouses. Blocks of foamed glass have been erected and fastened to the steel framework forming the outside wall where they also serve as insulation. Foamed glass blocks have also been placed between or over bulb purling to form the structural roof deck. Figure 5 shows foamed glass being erected against the outside framework of a large freezer.

Figure 6 shows foamed glass being used on a large brewery. Foamed glass walls built in this manner are usually 7″ to 8″ thick and are erected in two layers, with horizontal and vertical joints staggered to prevent any thermal short circuit. The outside of the wall Is usually finished with stucco or metal siding. If metal siding is used, horizontal wood sleepers are im­bedded in the outer layer of foamed glass to facilitate fastening of the metal.

One might question how this construction stands up structurally. Wind load tests have been run on a ICV -0″ x Z01-0″ x 8″ thick foamed glass wall panel. Before excessive deflection took place, the wind velocity exceeded 78 mph. The panel tested did not have an out­side finish, which would add to the structural strength. Also, the foamed glass is rigid, having an ultimate compressive strength of 100 lbs. per sq. in., and the material is not affected by moisture or changes of humidity, which insures against sagging or buckling of the wall.

Walter Lovett was a visionary in 1960. We discussed the above in a few blogs about 55 years later: floating , Acoustic absorption with cellular glass and  Houses with cellular glass walls.

Measuring the thermal conductivity seems to be easy. A stable temperature gradient is generated over a sample and the heat flow through this sample is measured . The thermal conductivity is this heat flow divided by the temperature gradient, section and multiplied with the thickness. But it seems not that easy. A recent  publication  on the website of Aalborg shows that at least measuring the thermal conductivity of cellular glass is not straigthforward. Indeed, in four cases, the declared value of the maufacturers is lower than the measured value. In the case of GLAPOR, I selected and transported the samples myselves, which reduces the risk of wrong sampling to almost zero.

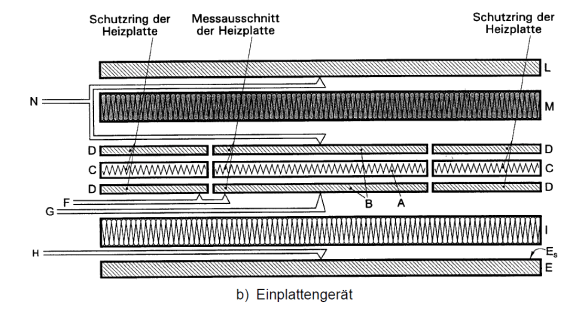

All measurements are done with the Guarded Hot Plate EP500 from  Lambda Meßtechnik.  This is a one sample Guarded Hot Plate, which is described in the standard EN12667, where we find the following setup.

Samples can be easiliy loaded in this system and it should be perfect for students to be used. Nevertheless, it is impossible that 4 products from two manufactures are not in line with the published declared value with 10% exceedance. For that reason, we think that misuse or a defect of the equipment is the reason of the high measured thermal conductivities.

Haller Kreisblatt is a German local news paper in the Altkreis Halle region. It came with the following contribution. In the following, we give a Google translation of this contribution:

Never again polystyrene for urban buildings? UWG wants to do without the insulating material

Umstritten: Das Dämmen von Gebäuden mit Styropor. Foto: Fotolia (© www.ingo-bartussek.de)

Thermal insulation of urban buildings: The Group of Independent Voters will table an application for the future waiver of the material in the Building Committee Hall . “This topic has been occupying me for years. I just can not understand how you can stick such a Sch … to the house. “Lack of understanding and a trace of annoyance resonate when Jürgen drawl on the topic of polystyrene as insulation material speaks:” If you consider what there in the future when we come to waste disposal and what we leave behind for our children? “, the civil engineer asks a rhetorical question that no-one can yet conclusively answer.

That the insulation of buildings with styrofoam, as polystyrene commonly referred to, is anything but unproblematic, has been criticized by experts for years (see criticisms below). This has now induced the UWG Group to propose in the Committee on Construction and Transport that in the future, urban buildings should no longer be styrofoam-insulated. The explanatory statement states: “The production of styrofoam from fossil petroleum consumes vast amounts of energy. It emits a lot of CO 2 (climate-damaging greenhouse gas). “

Different views on the subject of mold

In addition, the UWG points out that Styrofoam despite fire protection class B in the event of fire releases strong smoke and toxic gases. In addition, it could come through the insulation with Styrofoam to increased mildew. In its report to the committee, the administration explains that in the course of the renovation of City Hall II on Graebestrasse rock wool and, alternatively, polystyrene as insulation were already tendered. The statement that Styrofoam promotes mold growth, however, does not want to leave the city’s building administration in such a position: “In a technically correct installation, the risk of mold formation is always reduced and not increased.

In his practice as a civil engineer, Jürgen Deichsel has, however, according to his own data, often experienced that work was not carried out properly, and after a few years, defects in the insulation were visible: “Styrofoam often does not last longer than 30 years and then has already been revised In addition, the expert criticizes that, according to his observation in the past, the necessary fire bars have not been sufficiently installed in many buildings, in order to prevent the fire from jumping from one floor to the other in the event of a fire, as a presbyter Tiller had to report that there is a condition of the state church, which prohibits the use of polystyrene in church buildings:”Steinwolle was used for the cultivation of the kindergarten in Künsebeck and also with the new building of the device at the Neustädter Straße no polystyrene is used.”

In its draft resolution for the committee meeting on Thursday evening from 17.15 clock in the town hall hall, the administration accepts the request of the UWG and advises to renounce in the future, in principle, the use of polystyrene in urban buildings. Exceptions should be made to the committee on a case-by-case basis. The decision on the application, however, the policy.

 INFO

Many criticisms

• For many years, lobbyists and politicians have been campaigning to keep houses airtight with polystyrene, better known as styrofoam. Meanwhile, the critical voices are multiplying, stating reasons against the use of the insulating material made of petroleum.

Toxic HBCD

• Older insulation boards contain the bromine compound HBCD (hexabromocyclododecane). In the event of a fire, it should prevent the fire from spreading over the entire façade. Already in 2008 it was included in the list of toxic substances and banned worldwide. However, it has only been possible to use insulation materials in Germany since 2015. Despite the ban, plates treated with HBCD were allowed to be sold until August 2017.

Hazardous waste?

• Meanwhile, styrofoam plates treated with HBCD were classified as toxic waste and had to be disposed of as hazardous waste. Because there were massive disposal bottlenecks, the classification of the policy was withdrawn. Since August 2017, styrofoam treated with HBCD has therefore only to be disposed of separately.

Use of biocides

• Styrofoam is also criticized because it often adds chemicals (biocides) to the material to prevent algae and mold on insulated house walls.

energy balance

• Controversial is the energy balance of Styrofoam. Critics note that she turns negative when her lifetime is 50 years old

The life time of EPS/XPS should be only 30 years while 50 years is given in the Environmental Product Declarations. Also flame retarders are (have to be ) used, which are problematic for disposal. On top of that, biocides are present to avoid mold and algae. All these large problems are NOT present in GLAPOR cellular glass and its life time is a lot larger than 50 years, like every bottle and window can tell you. Indeed, GLAPOR is foamed from bottles and windows.

“Das Haus” is a German magazine about building and decorating houses. In a recent number, they have a contribution about the risks of Radon. In this contribution, they advice to use cellular glass as a seal against the radon gas.  Hereunder, you will find a Google translation of the German article, which can be understood.

Cellular materials are smart materials. Two architects of this idea are Michael Asby and Lorna Gibson. Lorna was once a PhD student of Michael. They investigated the mechanical and thermal behaviour of all kind of foams.

In the following, I add the PhD-thesis of Lorna  and a very good introduction to foams by Michael.
