Eco-scarcity (UBP) ranking of thermal insulation

logo_smallUBP is the German abbreviation of Umweltbelastungspunkte, which is a result of  “Methode der ökologischen Knappheit”. The method is invented in Switzerland , which explains the use of the German language. In English, we speak about the  Ecological Scarcity Method (which has no Wikipedia page).

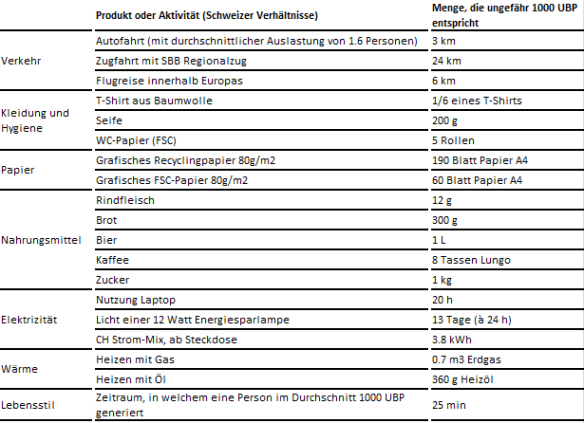

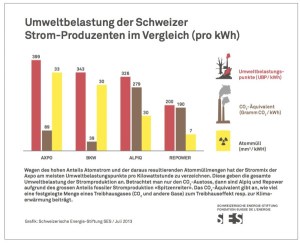

SES_Umweltbelastung_2013-600x487An EPD gives you for the production of each product how much CO2 is generated, how much fossil energy is used, etc. These 8 numbers don´t say a lot to the common consumer. The UPB combines the impact of all these emissions and material-energy use on the environment, the future of the raw materials and our health in only ONE number. The method is defined in a paper by the Swiss government and also Volkswagen has sponsored a publication. But for the standard consumer, I have the following table with the quantity of products for 1000 UBP.

UBP

This method is also applied for thermal insulations on the Swiss market which can be found in this spreadsheet.

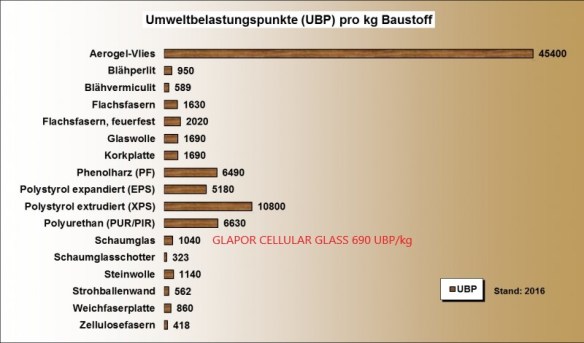

GLAPORlogoGLAPOR communicates 690 UBP per kg cellular glass board for production in Germany and delivery in Switzerland, which is lower than any thermal insulation except foamed glass gravel (also a GLAPOR product) like shown in the following figure. The improved value compared with “Schaumglas” is due to the fact that GLAPOR foams directly recycled glass without melting a special composition. In case production should be in Switzerland, the UBP lowers to 552 UBP/kg.

oekobilanz-ubp-waermedaemmung-2016



For a fair comparison of thermal insulations, we have to work with UBP/m² for a certain thermal resistance (R=5 m²K/W) to be obtained. This table is given in the following:

ubp

GLAPORlogoIt is clear that according to the UBP system in Switzerland, GLAPOR cellular glass boards are the most ecologic thermal insulation which can take a compressive load of 600 kPa with a safety factor = 2.5. This is a consequence of the direct foaming of recycled glass. Standard cellular glass is made from a special glass composition involving an energy intensive melting step. In case cellular glass gravel is used, it is needed to use the RDS-system of GLAPOR to keep the gravel dry in order to have the best ecological solution.
